Export failed (error code 501, circuit invalid) - What to do?

During the export from the IZYTRONIQ to the test instrument, the error message 501 often occurs. The error message states that for one or more circuits (=circuit) the data are not filled in.

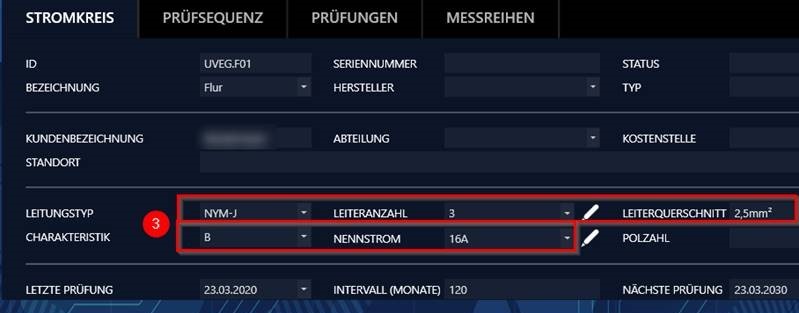

With this message it is recommended to check the following mandatory fields for completeness:

• Line type
• Number of conductors
• conductor cross section
• Characteristic
• Rated current

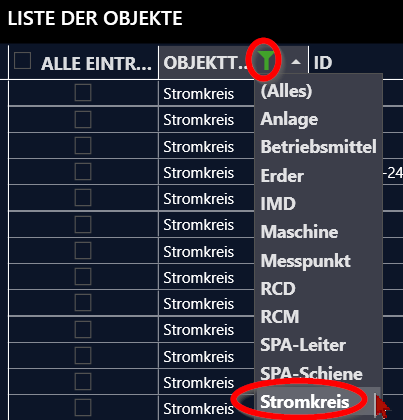

You can also set a filter so that only the circuits are displayed to you:
