Why can the polarity be switched off?

If the polarity is switched off, the polarity of the measured value is not taken into account for the charge retention, discharge and charge measurements. All recorded measured values are positive (absolute values).

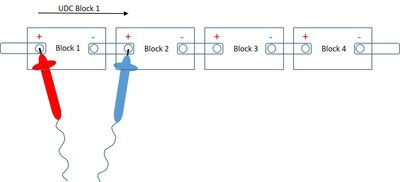

This function speeds up the measurement process because one pole of a block can be omitted at a time and only one test probe needs to be converted per measurement.

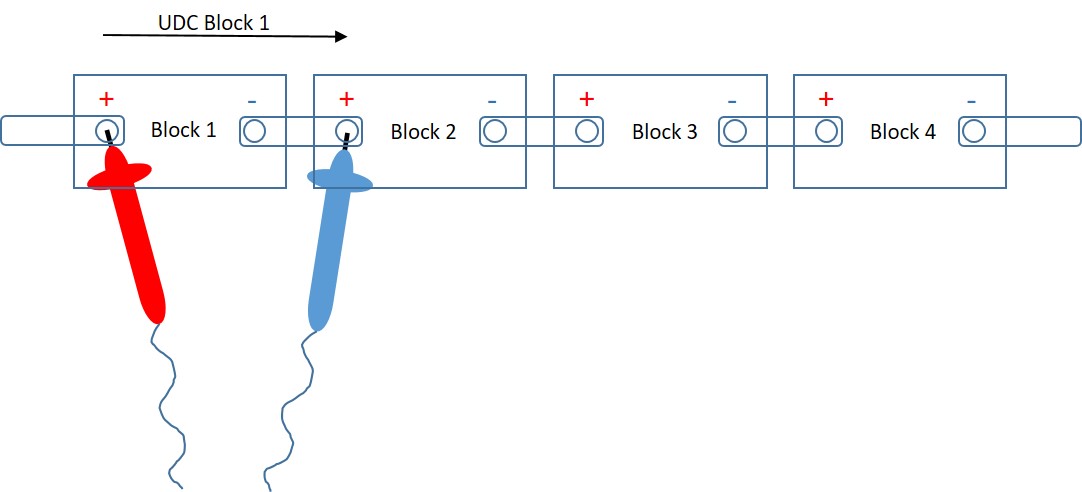

Polarität aus 1.jpg

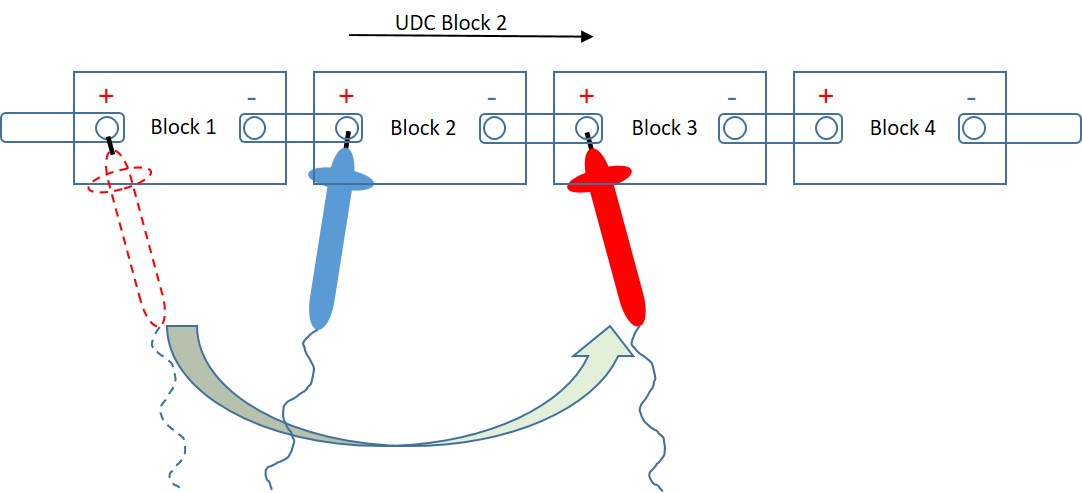

Polarität aus 2.jpg

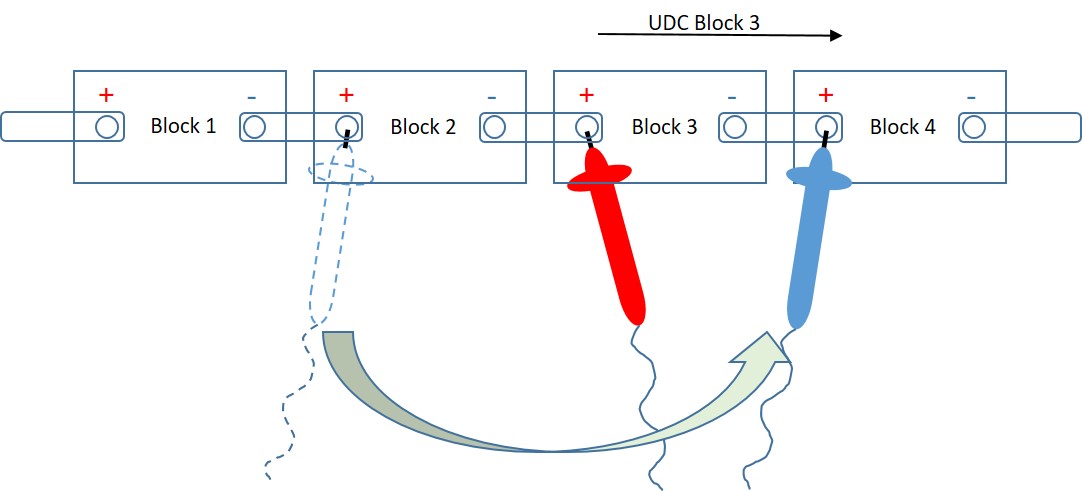

Polarität aus 3.jpg
