How do I import the master data from ELEKTROmanager into IZYTRONIQ?

The following instructions describe the simplest variant. (Here: Elektromanager version 10)

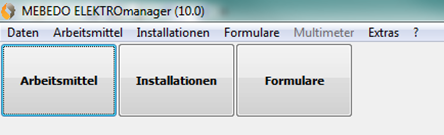

• Call work equipment

• Work equipment Data sets according to filtner

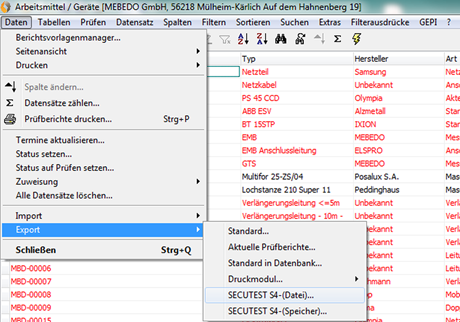

• File --> Export --> SECUTEST S4 (file)...

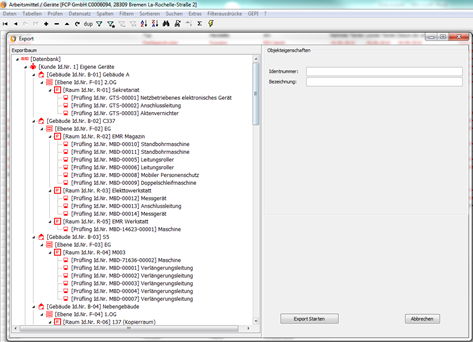

• Export tree is displayed

• Start export
• Assign path for exportfile.etc / Save as.

The resulting ETC file can now be converted to an XML file using the "NEXONIQ" conversion software (available from Gossen Metrawatt, part number: Z957A).

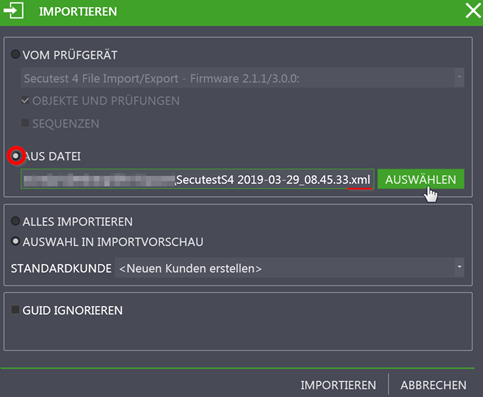

This file can now be imported directly into IZYTRONIQ via IMPORT --> FROM FILE:
